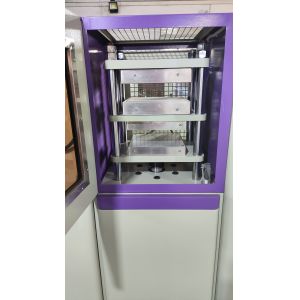

Custom New 400×400mm Flat Vulcanizing Machine
Product brief introduction
This machine is equipped with PLC program color touch screen controller and man-machine interface operation system which can set parameters such as pressure,temperature,time,exhaust times,instant display and monitoring of vulcanization process.All the programs are automatically completed,and the structure is simple and the machine intelligent and efficient.
Platen Press Technical Data
| CF-300B | CF-400B | CF-500B | Remarks | |
| Capacity | 30T | 30T | 30T | Working pressure /working area/number of floors/cooling and heating plates can be customized according to customer requirements |
| Working Area | 300mm*300mm | 400mm*400mm | 500mm*500mm | |
| Number of Floors | Two floors | Two floors | Two floors | |
| Cooling and Heating Plate | One for heating One for cooling | One for heating One for cooling | One for heating One for cooling | |
| Total Power | 11kw | 15kw | 20kw | |
| Weight | 750kg | 950kg | 1200kg |
Product Superiority
1. Heating plate: Made of imported high temperature resistant steel, the surface is treated with deep carbonization, hard chrome plating and other processes, with the characteristics of fast heat transfer, corrosion resistance, high hardness, no deformation, etc. Built-in heater and temperature sensor on the back, high power, fast heating, sensitive and uniform temperature measurement, small temperature error range.
2. Cold conduction plate: Aluminum material, anodized surface, corrosion-resistant, fast heat conduction.
3. Guide columns: Four hardened and precisely positioned columns and hydraulic cylinders, supported by a thick steel plate base of the entire control box, the hydraulic platform, on the columns with self-lubricating bronze bearings, guide sliding, lifting and lowering smooth and noiseless; the top and rear of the tablet press are surrounded by heavy steel to provide additional safety protection for the operator; the upper layer is steel plate - with inserted thermocouples in the middle near the surface.
Application
Mainly used in rubber and its products, plastic and its products, polyolefins, PVC, films, coils, profiles production and polymer blending, pigments, masterbatches, stabilizers, stabilizers and other industries. Its main purpose is to test the changes and comparisons of the physical properties of raw materials after molding. Such as: color dispersion, light transmittance, glossiness of the material surface, whether there are black spots, its strength, plasticity, hardness after adding auxiliary materials, etc.
It is suitable for factories to inspect the physical properties of suppliers' raw materials, compare similar products, and develop new products by the R&D departments of colleges and universities. It can be used as a reference for factories before mass production.
Typical applications:
1. Detection of gel (fish eyes), black spots, stains, etc. of raw materials
2. Pressing and sample preparation of raw materials
3. Physical property testing
4. Material research and development
