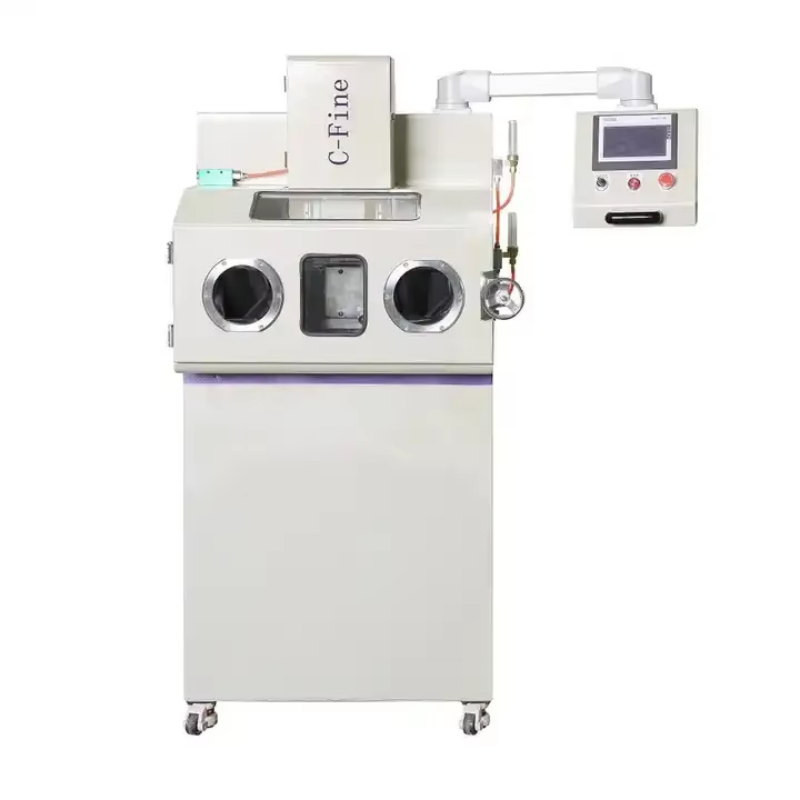

Custom Low Price 1L Protection Atmosphere Inner Mixer
Product brief introduction
This internal mixer is constructed from imported full-alloy materials, eliminating the need for spraying or electroplating. It is designed for processing high-viscosity, high-hardness materials such as powder metallurgy feedstock, ceramic powders, and titanium or aluminum alloy powders, and is well-suited for internal mixing and refining of diverse raw materials.
Technical Data
| CF-1LQF | CF-3LQF | CF-5LQF | |
| Effective mixing volume(L) | 1 | 3 | 5 |
| Batch Feeding (depending on material) | 2-5Kg | 6-9Kg | 10-15Kg |
| Main Motor(KW) | 4 | 7.5 | 11 |
| Frequency Converter(KW) | 4 | Accept customization | |
| Pressure Cylinder | ￠63 | ￠80 | ￠100 |
| Speed (front/rear) | 0 - 40/31r/ m | 0- 40/31r/m | 0- 40/31r/m |
| Heating Method | Electric heating | Electric heating | Electric heating |
| The Cooling Industry | Ventilation cooling | Water cooling | Water cooling |
| Pitch Diameter Of Screw Rod | 35mm | Accept customization | |
| Weight(Kg) | 1200 | 2080 | 2500 |
Product Superiority
1. The inner chamber can be fully open,easy to clean without any dead ends.

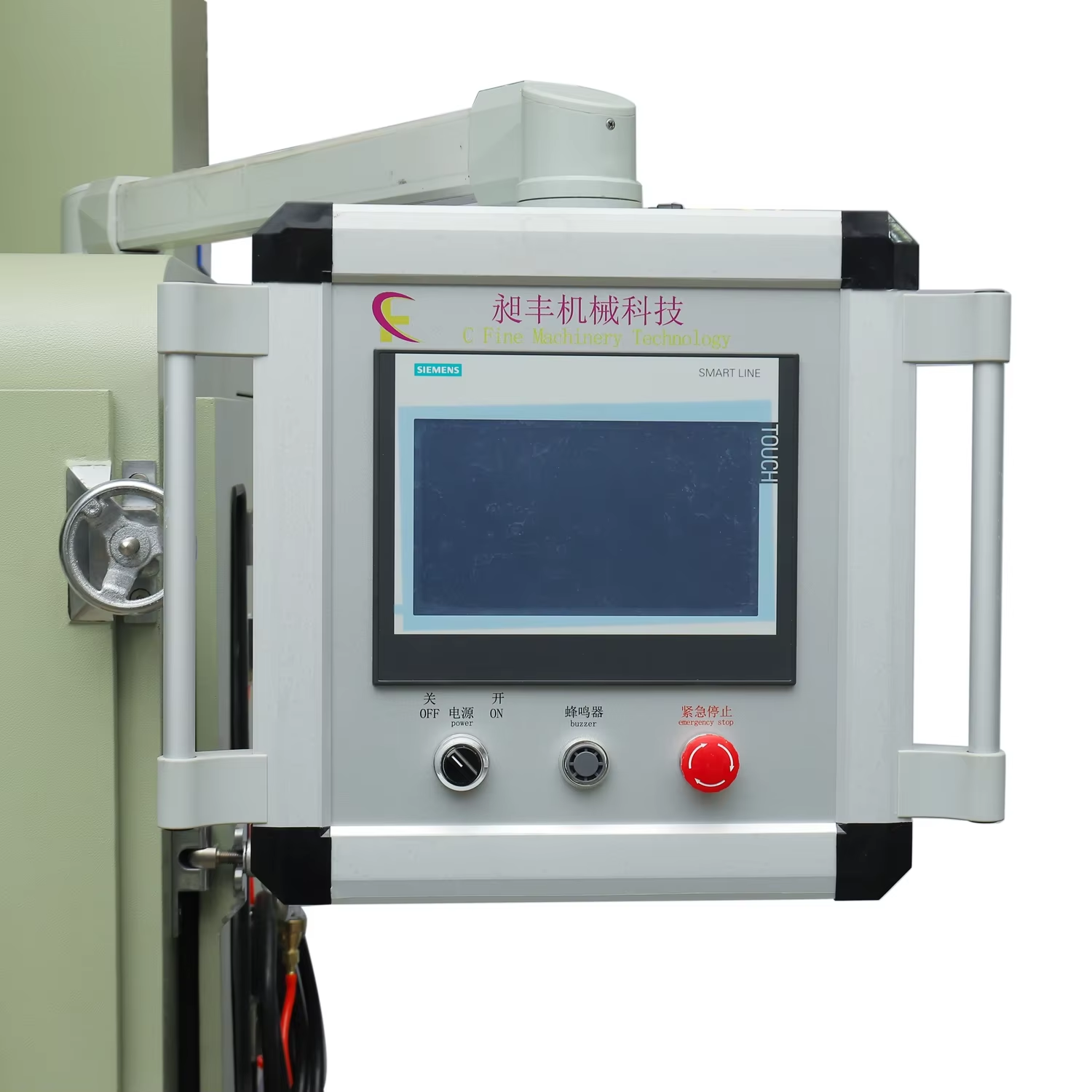

2. By adopting PLC control system to connect the preset values and the detection values,with intelligentoperation to discharge the oxygen contect in positive pressure,and recharge inert gas automatically.
3. With double atmosphere protection device,the mixing process is in the condition of positive pressure.
Mixing System

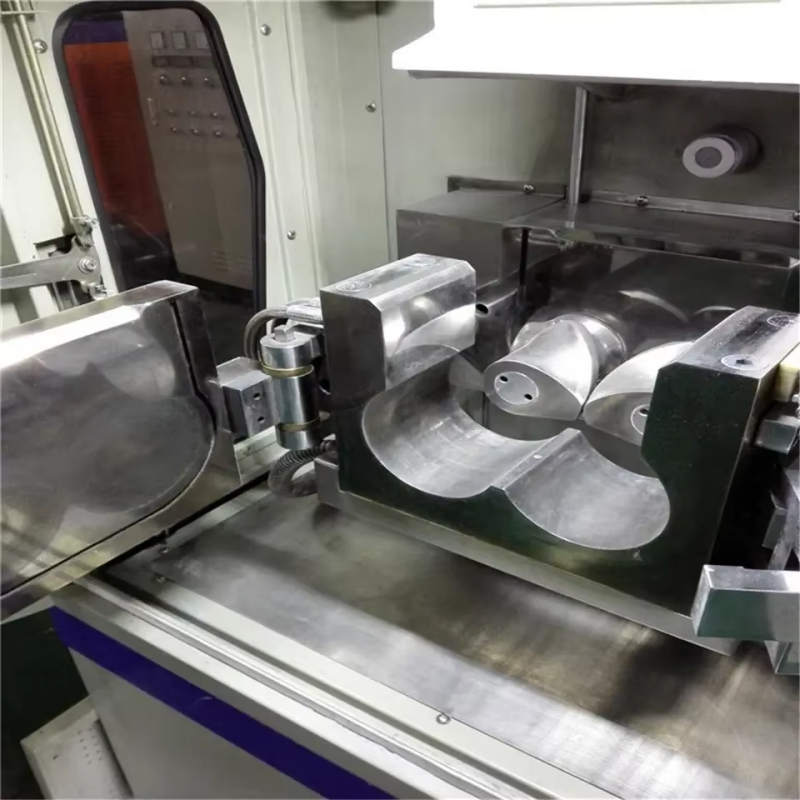

The mixing chamber is "W" shaped, and adopts an "M" shaped lower pressure cover to form a fully enclosed mixing space. The stirring blade adopts a prismatic spiral design without dead angles, so that the material can be sheared and dispersed to meet the physical property requirements. The stirring blade is a hollow structure, and the part in contact with the material is made of imported all-alloy material (no spraying or electroplating is required), which is wear-resistant, corrosion-resistant, not easy to stick to the material, and has a long service life.
Technical Advantage
1. CFine's anti-leakage powder device adopts mechanical shaft seal tightening technology and uses self-lubricating seal rings to keep the seal rings in a compressed and sealed state during the mixing process. The self-lubricating seal rings can further reduce the wear of the mixing system and more effectively reduce the noise such as whistling caused by leakage and poor sealing. It can greatly improve the anti-leakage powder function, making cleaning, color change and disassembly simpler and more convenient, and reduce the pollution to the materials.
2. This machine adopts a through-type heating system, which heats faster and transfers temperature more evenly, and the heating efficiency is 50% higher than that of traditional heating plates. It adopts a PLC program control system.
3. The internal structure of the mixing chamber adopts a complex tube-belt design, which has good heat exchange and precise temperature control. The rotor is cooled by water, which effectively prevents sticky materials and controls the temperature precisely, making the materials dispersed more evenly.
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
