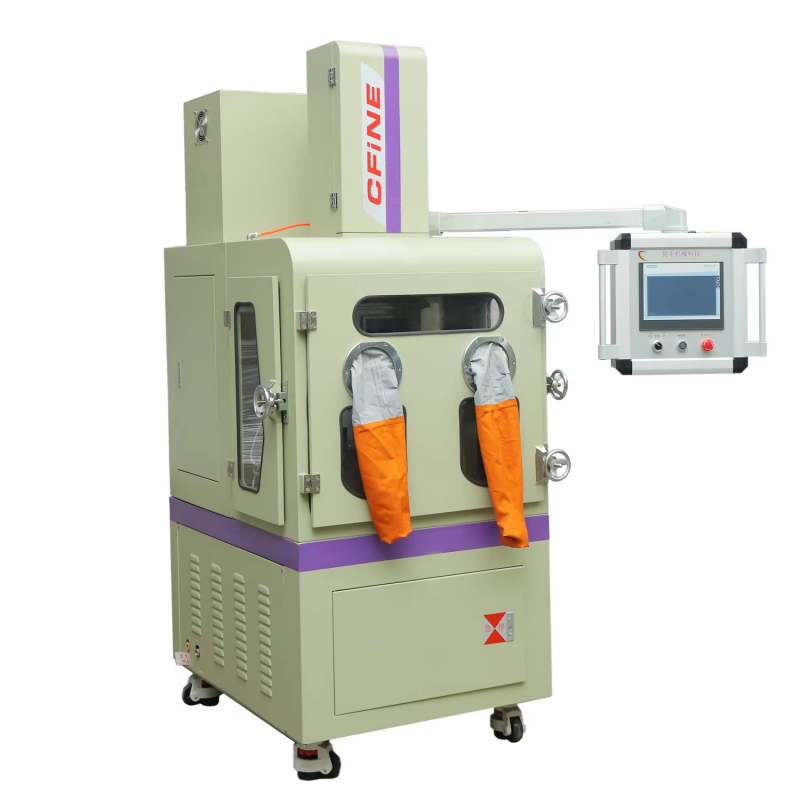

Custom Low Price 5L Protection Atmosphere Inner Mixer
Product brief introduction
Crafted from premium imported alloy, this internal mixer requires no spraying or electroplating treatment. It is ideal for demanding applications involving high-viscosity and high-hardness powders—such as ceramic materials, powder metallurgy, and titanium/aluminum alloys—and ensures reliable internal mixing and refining for various formulations.
Technical Data
| CF-1LQF | CF-3LQF | CF-5LQF | |
| Effective mixing volume(L) | 1 | 3 | 5 |
| Batch Feeding (depending on material) | 2-5KG | 6-9KG | 10-15KG |
| Main Motor(KW) | 4 | 7.5 | 11 |
| Frequency Converter(KW) | 4 | Accept customization | |
| Pressure Cylinder | ￠63 | ￠80 | ￠100 |
| Speed (front/rear) | 0 - 40/31r/ min | 0- 40/31r/min | 0- 40/31r/min |
| Heating Method | Electric heating | Electric heating | Electric heating |
| The Cooling Industry | Ventilation cooling | Water cooling | Water cooling |
| Pitch Diameter Of Screw Rod | 35mm | Accept customization | |
| Weight(KG) | 1200 | 2080 | 2500 |
Product Superiority

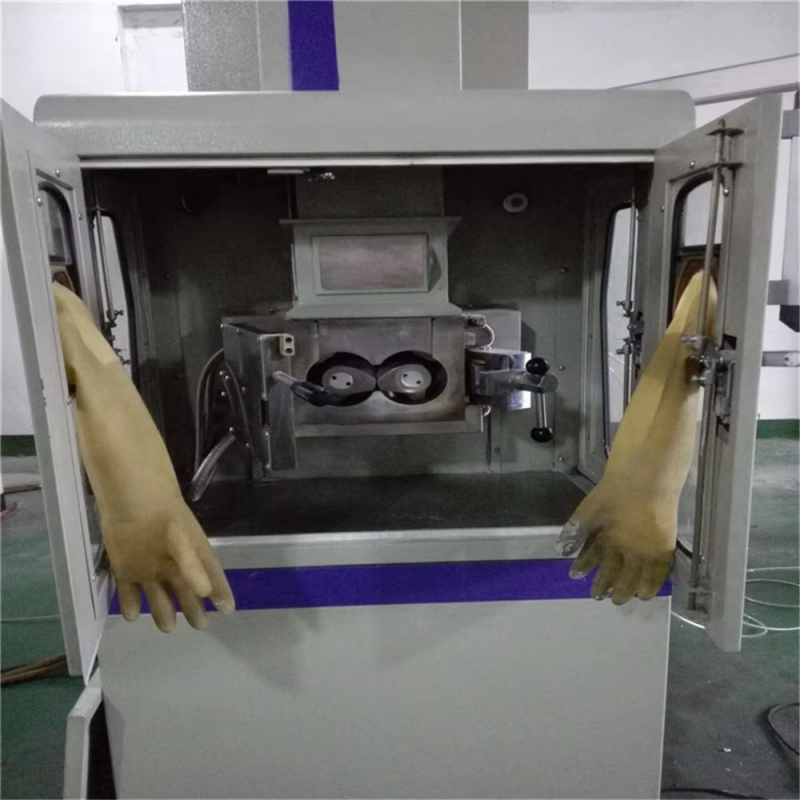

1. The inner chamber can be fully open,easy to clean without any dead ends.
2. By adopting PLC control system to connect the preset values and the detection values,with intelligentoperation to discharge the oxygen contect in positive pressure,and recharge inert gas automatically.
3. With double atmosphere protection device,the mixing process is in the condition of positive pressure.
Operating Principle
The two rotors in the mixing chamber rotate relative to each other under a certain speed ratio, clamping the material from the feeding port and bringing it into the roller gap to be squeezed and sheared by the rotors. After passing through the roller gap, it hits the sharp edge of the mixing chamber "W" and is divided into two parts, respectively along the gap between the front and rear chamber walls and the rotors and then returns to the top of the rotor. In the closed mixing chamber, the material is strongly sheared and mixed under certain pressure and temperature conditions, so that the formula materials are fully dispersed and plasticized, so that the formula can play the best effect.
Mixing System
The mixing chamber is "W" shaped, and adopts an "M" shaped lower pressure cover to form a fully enclosed mixing space. The stirring blade adopts a prismatic spiral design without dead angles, so that the material can be sheared and dispersed to meet the physical property requirements. The stirring blade is a hollow structure, and the part in contact with the material is made of imported all-alloy material (no spraying or electroplating is required), which is wear-resistant, corrosion-resistant, not easy to stick to the material, and has a long service life.
Technical Advantage
1. CFine's anti-leakage powder device adopts mechanical shaft seal tightening technology and uses self-lubricating seal rings to keep the seal rings in a compressed and sealed state during the mixing process. The self-lubricating seal rings can further reduce the wear of the mixing system and more effectively reduce the noise such as whistling caused by leakage and poor sealing. It can greatly improve the anti-leakage powder function, making cleaning, color change and disassembly simpler and more convenient, and reduce the pollution to the materials.
2. This machine adopts a through-type heating system, which heats faster and transfers temperature more evenly, and the heating efficiency is 50% higher than that of traditional heating plates. It adopts a PLC program control system.
3. The internal structure of the mixing chamber adopts a complex tube-belt design, which has good heat exchange and precise temperature control. The rotor is cooled by water, which effectively prevents sticky materials and controls the temperature precisely, making the materials dispersed more evenly.
After-sales Service
During normal use, non-consumable parts are guaranteed for one year. We provide on-site installation guidance and long-term technical support.
Note: Electrical components and motors are imported from Taiwan and foreign brands.
